Computerrized Panel Cutter Machine
Dettagli:
| Luogo di origine: | Guangdong, Cina |
| Marca: | YuTeng |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|---|
| Prezzo: | $9,200-10,000 |
|
Informazioni dettagliate |
|||
| Voltaggio: | 380 V/50 Hz, 220 V/60 Hz | Energia: | 1,8 kW, 2,6 kW |
|---|---|---|---|
| Dimensione: | 3700*2200*2200mm, 3700mm*1100mm*2200mm, 3700mm*1100mm*1850mm | Peso: | 780Kg, 1500Kg |
| Pressione dell'aria: | 0,4-0,8MPA | Spessore: | ≤80 mm, ≤50 mm |
| velocità: | 10 m/min | Dimensione X massima: | 2300 mm, 300 mm |
| Materiali di taglio: | Stoffa, tessuto, indumento, lana, tessuto, seta | Componenti principali: | MOTORE |
| Grado automatico: | Automatico | Capacità produttiva: | 100% |
| disposizione del bordo: | 2300 mm, 300 mm | Taglierine max: | 2300 mm |
| Pressione operativa: | 0,4-0,8MPA | ||
| Evidenziare: | computerized panel cutter machine,computerized cutting machine with warranty,precision panel cutting machine |
||
Descrizione di prodotto

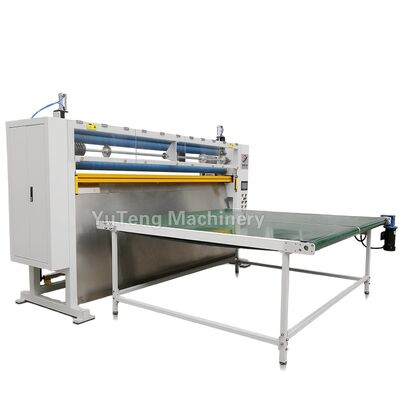

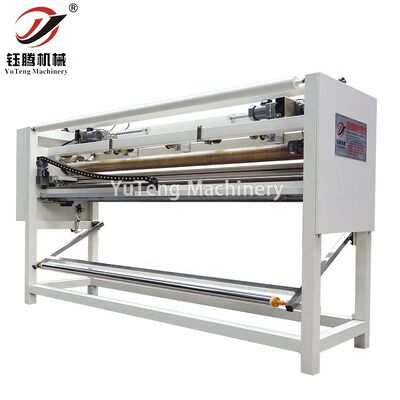

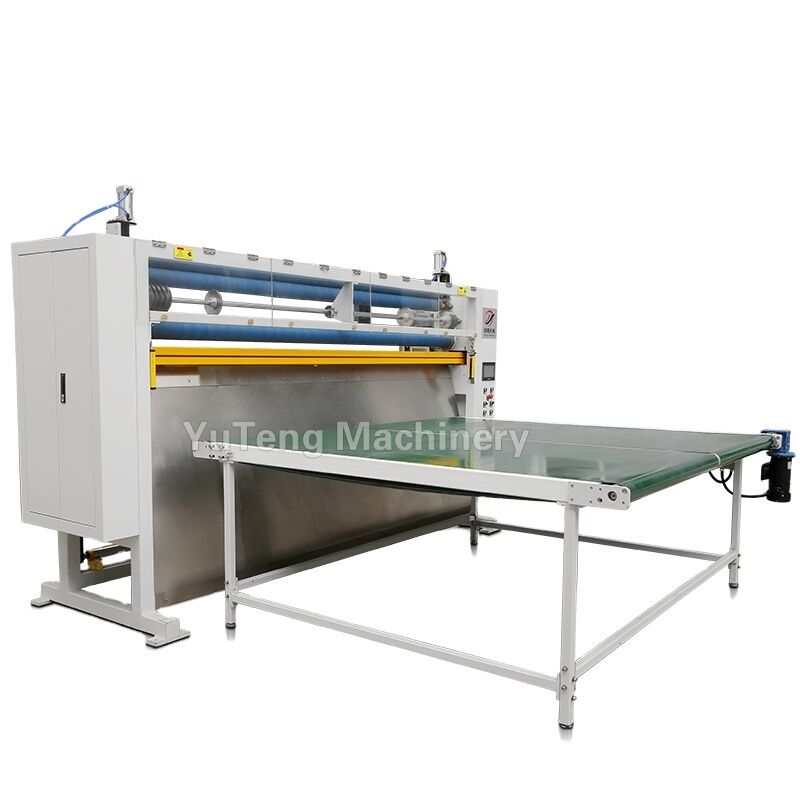

Computerized Panel Cutter Machine
Product Parameters
| Feature | YTCM-F SERIES | YTCM-D SERIES |
|---|---|---|
| Edge Trim/Slitters Max X Dimension | 2300mm | 2300mm |
| Edge Trim Max X Dimension | 300mm | 300mm |
| Power Supply | 380V/50Hz 220V/60Hz |
380V/50Hz 220V/60Hz |
| Machine Dimension (L*W*H) | 3700mm*1100mm*2200mm | 3700mm*1100mm*1850mm |
| Weight | 1500Kg | 1500Kg |
| Operating Air Pressure | 0.4-0.8Mpa | 0.4-0.8Mpa |
| Thickness | ≤80mm | ≤50mm |
| Speed | 10m/min | 10m/min |
| Power | 2.6KW | 2.6KW |
Company Profile
DongGuan YuTeng Machinery Technology Co., Ltd. is a modern high-tech enterprise specializing in:
- High-speed Computerized Shuttle (Lock Stitch) Multi-Needle Quilting Machines
- Double Rows Computerized Quilting and Embroidery Machines
- Computerized Chain Stitch Multi-Needle Quilting Machines
- Computerized Panel Cutter Machines
- Rolling machines
Our Advantages
- 7-inch touch screen with large display for ease of operation (English/Chinese versions available)
- Hidden slitting blades for convenience and safety
- Electric controls for length and width of cross cut for user-friendly operation
- Feed-in top with article points for pressure roller ensures even pressure and level feeding
- Y-dimension encoder for precise length counting
- Specialized edge trimming capability for thinner materials
Certifications
