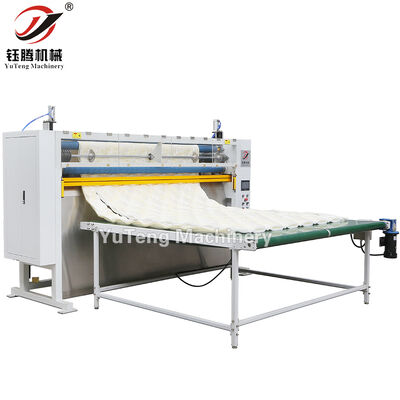

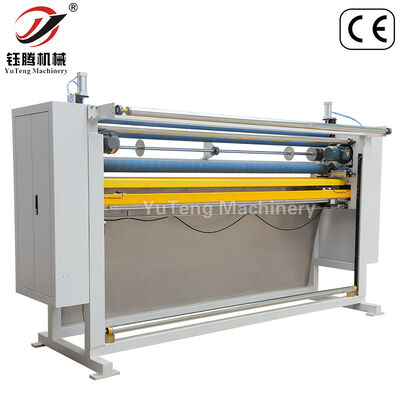

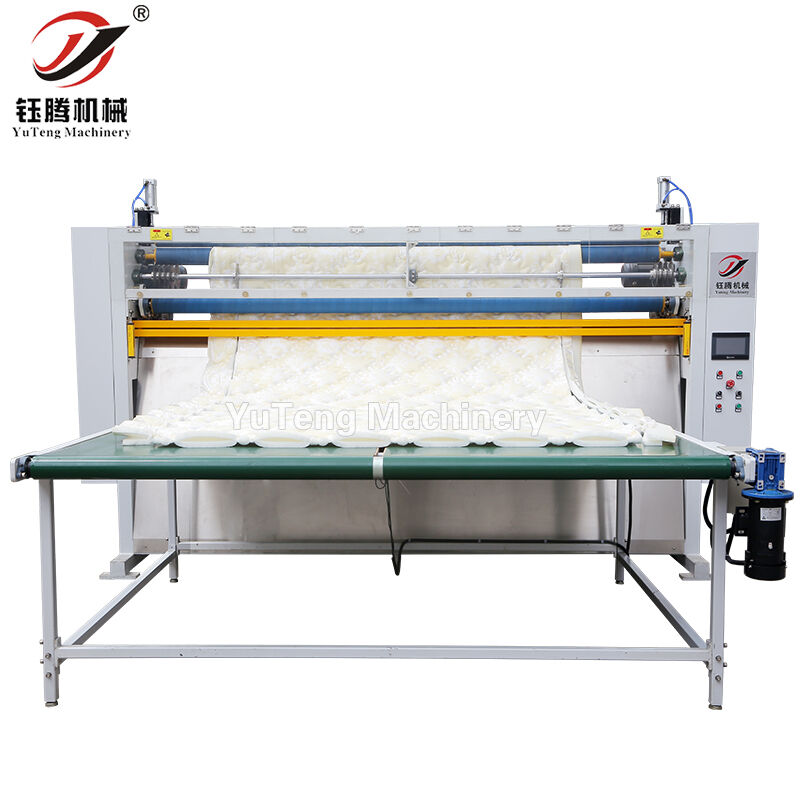

Economical Mattress Edge Fabric Cutting Machine for Quilting Machine
Dettagli:
| Luogo di origine: | Guangdong, Cina |
| Marca: | YUTENG |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 |
|---|
|
Informazioni dettagliate |
|||
| Peso: | 850KG | Voltaggio: | 220V, 380 V. |
|---|---|---|---|
| Dimensione X massima: | 2400 mm | Dimensione X minima: | 300 mm |
| Dimensione Y massima: | 2400 mm | Dimensione Y minima: | 300 mm |
| Dimensioni della macchina: | 3700 mm*1100 mm*1850 mm | Pressione dell'aria operativa: | 0.4~0.8MPa |
| Spessore del materiale: | 3-80mm | velocità: | 10(M/min) |
| Energia: | 2.6kw | Componenti principali: | PLC, motore |
| Dimensioni dello schermo: | 7" touch screen | Frequenza: | 50Hz, 60Hz |
| Alimentazione elettrica: | 380 V/50 Hz, 220 V/60 Hz | ||
| Evidenziare: | economical mattress edge fabric cutter,quilting machine fabric cutting tool,computerized mattress edge cutting machine |
||
Descrizione di prodotto
Economical Mattress Edge Fabric Cutting Machine for Quilting Machine
Product Main Features
- 7" touch screen with large display for easy operation
- Hidden slitting blades for enhanced convenience and safety
- Electric controls for precise adjustment of length and width cross cuts
- Feed-in top with article points for pressure roller ensures even pressure and smooth feeding
- Y-dimension encoder for accurate length counting with conveyor belt mechanical discharge
Purpose
This machine is designed for crosscutting, slitting, and edge trimming quilted fabric. It can operate in tandem with quilting machines and rolling devices or function independently.
Technical Parameters
| Edge trim/Slitters | |
|---|---|
| The Max.X dimension: | 2400mm |
| The Min.X dimension: | 300mm |
| Cross cut | |
| The Max.Y dimension: | 2400mm |
| The Min.Y dimension: | 300mm |
| Power supply: | 380V/50HZ 220V/60HZ |
| Machine dimension (L*W*H): | 3700mm*1100mm*1850mm |
| Weight: | 850kg |
| Operating air pressure: | 0.4~0.8Mpa |
| Thickness: | 3-80mm |
| Speed: | 10(M/Min) |
| Power: | 2.6KW |

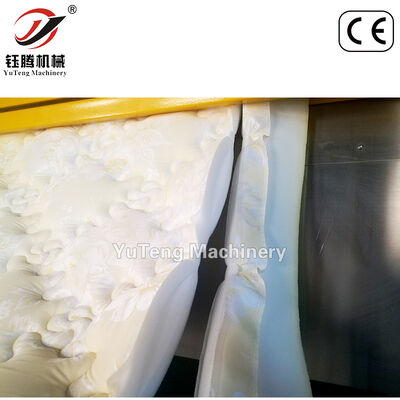

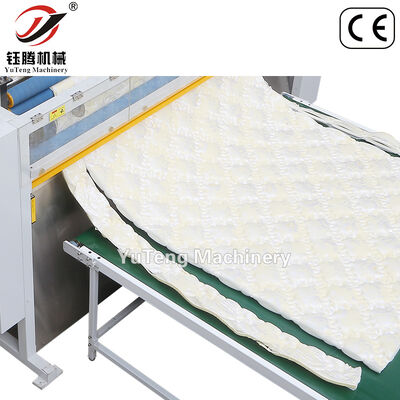

Effect Diagram
Certificate
Company Information
Business Terms:
- Delivery Time: Within 35 days upon receipt of 30% deposit
- Payment Terms: T/T 30% deposit in advance, 70% balance before shipment
- Delivery Terms: FOB, CIF, CFR, etc.
- After-sale services: Comprehensive support with one-year warranty
- Customized models available to meet specific requirements
